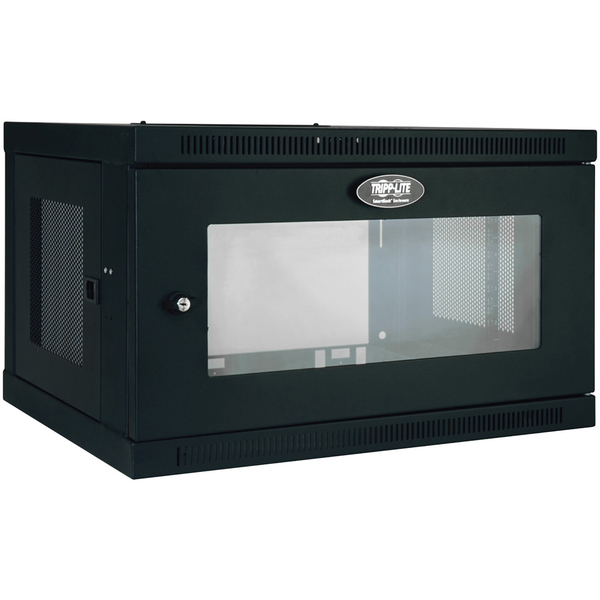

Tripp Lite by Eaton SRW6UG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure Cabinet with Clear Acrylic Window, SRW6UG

Description

Tripp Lite by Eaton SRW6UG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure Cabinet with Clear Acrylic Window, SRW6UG

Product Details

• Brand: TRIPP LITE(R) BY EATON(R)
• Warranty: 5 YEAR LIMITED
• Returnable: Yes
• Country of Origin: CHINA

Specifications

• Ideal for network wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space
• Secures 6U of 19-in. rack equipment up to 16.5-in. deep
• Maximum load capacity of 200 lbs.
• Front door includes shatter-resistant, clear acrylic window for monitoring equipment without unlocking the enclosure
• Cabinet should be rotated 180deg before mounting to open reversible doors left or right
• Locking steel cabinet vented at sides, front, top, and bottom
• flow-through ventilation keeps equipment cool
• Convenient ports with removable covers allow cable routing through top and bottom
• Wall-mounting holes spaced 16-in. apart for standard wall stud placement
• Vertical mounting rails adjust in 7/8-in. increments to accommodate equipment up to 20.5-in. deep, such as network switches and patch panels
• Rails support square hole or 12-24 threaded-hole mounting
• Rack spaces numbered for easy reference
• Can be converted to a roll rack with optional SRCASTER (sold separately)
• Meets Payment Card Industry Standards
• Ships fully assembled
• Includes mounting hardware, 2 keys, and owner's manual
